SMART RETURN PACKAGING

IPG SYSTEM-1208

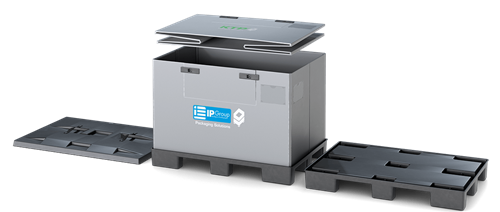

IPG Pallet container System-1208

Outside dimension: 1200 x 800 x 1200 mm
Inner dimension: 1156 x 756 x 1030 mm
Volume: 622 l
Weight: 29 kg
Folding system: Classic
Loading weight container: 250 kg
Loading weight stacking (1+3) 1150 kg totally
Return rate (return transport): 1:4,7
Volume reduction: 79 %
Concept manual for downloading:

The Pallet container can also be delivered in 1200x1000 mm size

Logistic and Transport

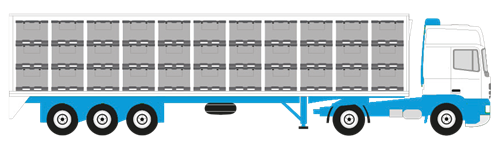

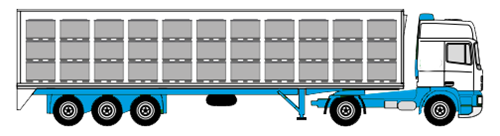

            Full truck: 99 pcs pallet containers

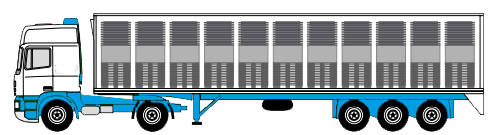

Return transport: 462 pcs pallet containers

              Volume reduction: 79 %

Pallet

* PE material

* Open topdeck

* Drainage holes

* 4 ways entry

Sleeve



* PP material

* 3000 gr/m²

* M- folding

* 2 stk document pockets

* 1 loading door 600x350 mm

Lid

Lokk

* PE material

* 2 pcs blue handles

* 2 pcs black handles

* Twinsheet

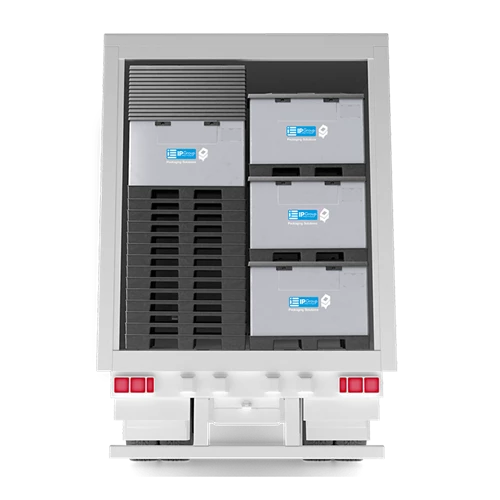

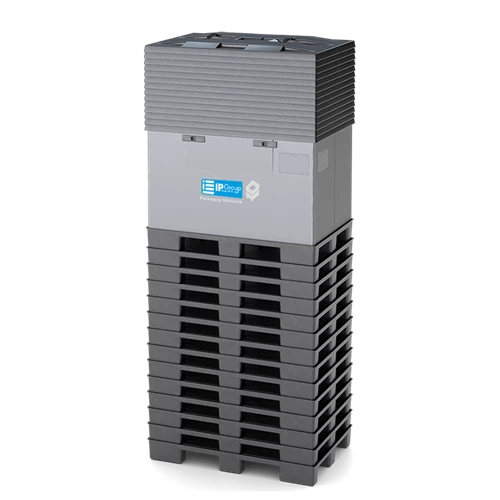

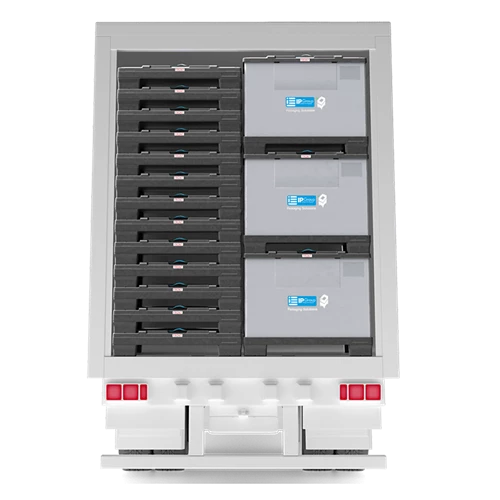

14 PALLET CONTAINERS OUT = 1 PALLET PLACE IN RETURN

SMART STACKING

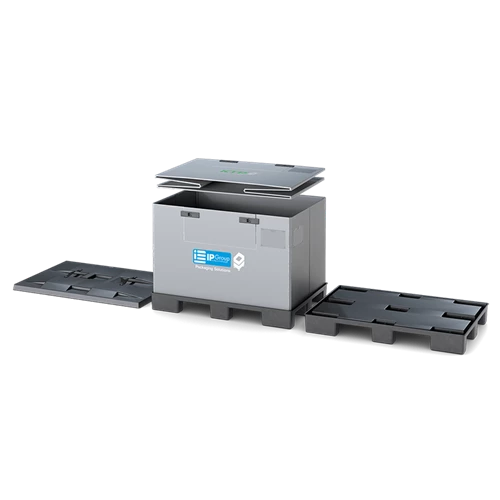

CHOOSE BETWEEN 3X800 OR 2X1200

SMART, SIMPLE AND EFFECTIVE

14 PALLET CONTAINERS OUT = 1 PALLET PLACE IN RETURN

SMART STACKING

CHOOSE BETWEEN 3X800 OR 2X1200

SMART, SIMPLE AND EFFECTIVE

SMART RETURN PACKAGING

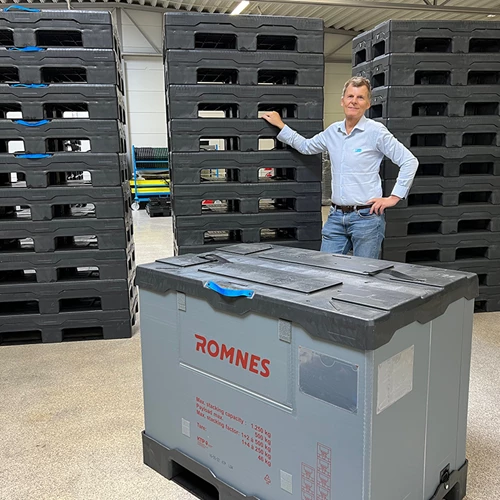

PALLET CONTAINER HD-1208

IPG Pallet container HD-1208

Outside dimension: 1200 x 800 x 950/1200 mm
Inner dimension: 1156 x 756 x 830/1030 mm
Volume: 622 l
Weight: 46 kg
Folding system: Sandwich folding
Loading weight container: 500 kg
Loading weight in stacking (1+3) 1250 kg totally
Return rate (return transport): 1:4
Volume reduction: 75 %
Height folded: 245 mm
In pallet rack: Yes
Concept manual for downloading:

The Pallet container can also be delivered in 1200x1000 mm size

Logistic and Transport



            Full truck: 99pcs pallet containers

Return transport: 396pcs pallet containers

              Volume reductions: 75 %

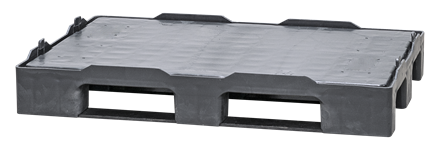

Pallet

* PE material

* Closed topdeck

* Steel reinforcement

* 4 ways entry

* Drainage holes

Sleeve



* PP material

* 3000 gr/m²

* M- folding

* 2 pcs document pocket

* 1 loading door 600x350 mm

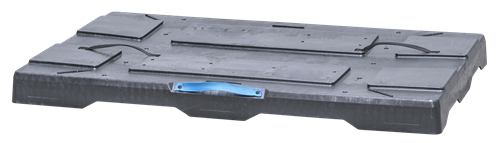

Lid

* PE material

* 2 pcs blue handles

* 2 pcs black handles

* Twinsheet

Effektiv og smart logistikk

Efficient and smart logistics

10 pallet containers out = 1 pallet place in return

Lasteluke

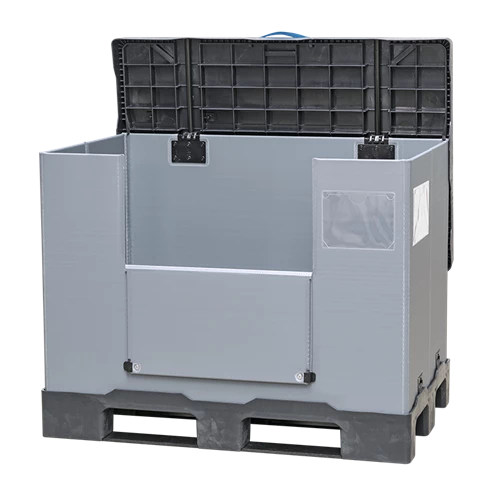

Loading door on the long side for ergonomic handling

Kompatibel

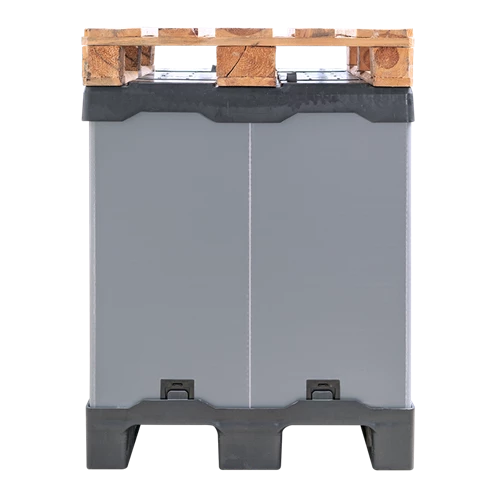

Compatible with Euro wooden pallet

Sikker håndtering

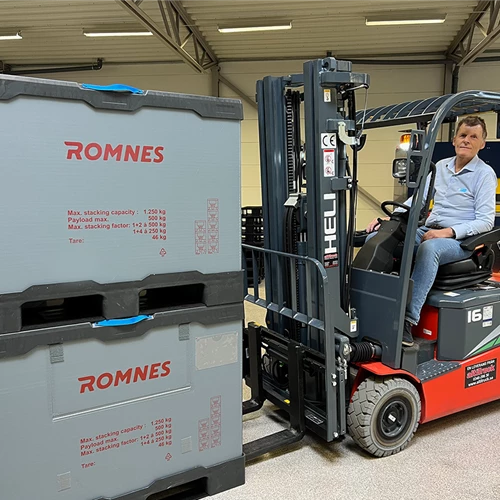

Double stacking. Friction strips on lid

SMART RETURN PACKAGING

ALL IN ONE UNIT 1200x800

All In One Unit 1200x800

Outside dimension: 1200 x 800 x 950 mm
Inner dimension: 1156 x 756 x 747 mm
Volume: 653 l
Weight: 48 kg
Folding system: Sandwich folding
Loading weight container: 500 kg
Loading weight stacking (1+3) 1250 kg totally
Return rate (return transport): 1:4
Volume reduction: 75 %
Height folded: 245 mm
Pallet racking: Yes
Concept manual for downloading:

The Pallet container can also be delivered in 1200x1000 mm size

Logistic and Transport



            Full truck: 99pcs pallet containers

Return transport: 396pcs pallet containers

              Volume reduction: 75 %

Pallet

* PE material

* Closed topdeck

* Steel reinforcement

* 4 ways entry

* Drainage holes

Sleeve



* PP material

* 3000 gr/m²

* M- folding

* 2 pcs document pockets

* 1 loading door 600x350 mm

Lid

* PE material

* 2 pcs blue handles

* 2 pcs black handles

* Twinsheet

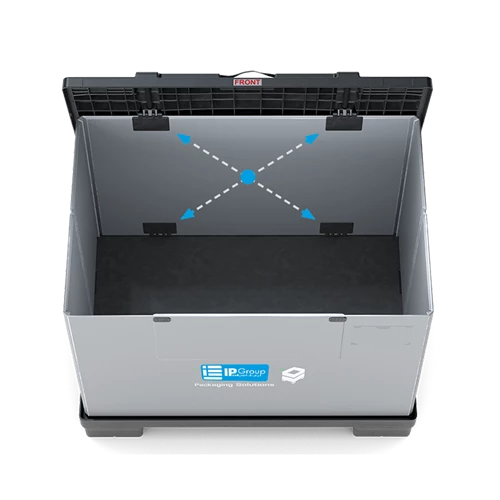

All In One Unit

* All In One Unit

* No loose parts

* Assembled in 4 seconds

Ingen løse deler

No loos parts. All in one unit

Settes sammen på 4 sekunder

Assembled in 4 seconds

Vi er gjerrige med luften

Shipping air is neither financially smart nor smart for the climate

Bærekraft

Part of IP-Group "The Green Loop"

"NEVER REFUSE TO REDUCE"

"NEVER REFUSE TO REDUCE"

PALLET CONTAINERS FOR VOLUME GOODS AND LONG GOODS

"ALL IN ONE" 1800x1200

"All in One" 1800x1200 Volume gods

Outside dimension: 1800 x 1200 x 990 mm
Inner dimension: 1735 x 1135 x 794 mm
Volume: 1564 l
Weight: 66 kg
Height folded: 215 mm
Folding system: Sandwich
Loading weight container: 350 kg
Loading weight in stacking (1+3) 1250 kg totally
Return rate (return transport): 1:4,3
Volume reduction: 77 %
Concept manual for downloading



Logistic and Transport

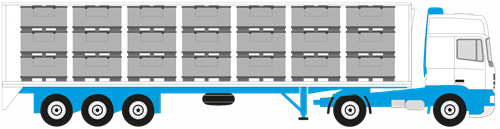

            Full truck: 42 pcs pallet containers

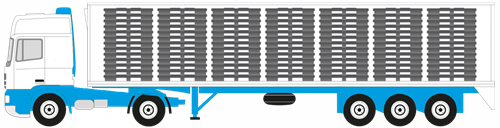

Return transport: 182 pcs pallet containers

              Volume reduction: 77 %

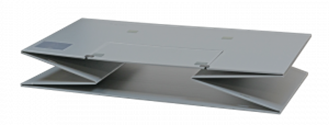

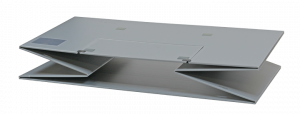

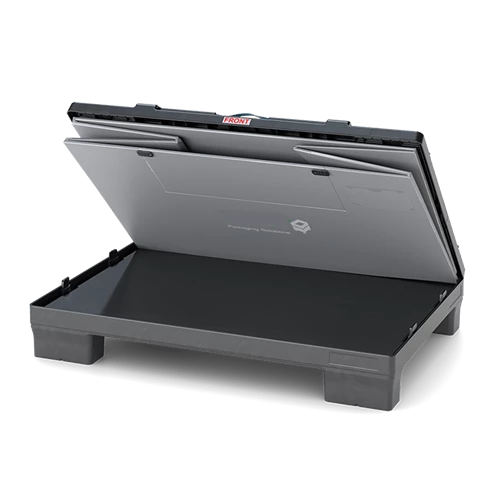

"All in One" folded

  • A complete unit
  • No loose parts
  • Ergonomic
  • 3 handles
  • The "3Rs" Reduce, Reuse, Recycle

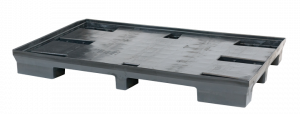

Pallet

  • PE material
  • Open deck
  • Drainage holes
  • Steel reinforcement in pallet
Sleeve

  • PP material
  • 3000 gr/m²
  • M- folding
  • 2 pcs document pockets
  • 1 loading door 800x350 mm
Lid

  • PE material
  • 2 pcs blue handles
  • 2 pcs black handles
  • Twinsheet

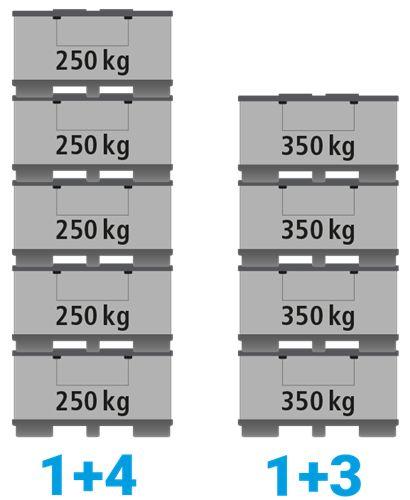

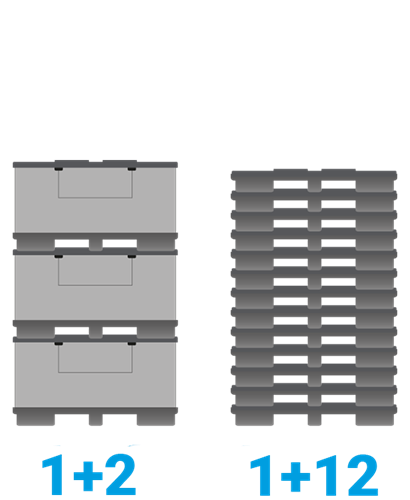

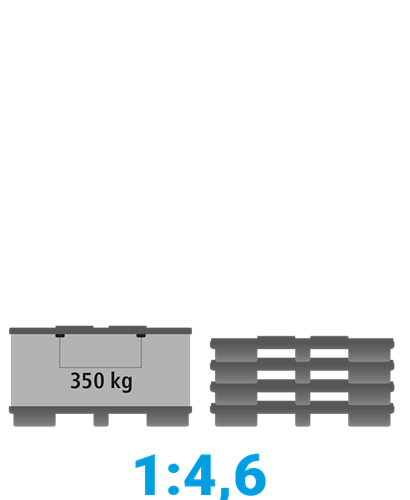

Block stacking for 250 kg and 350 kg

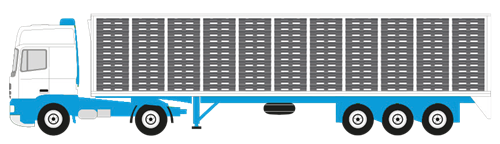

Loading on truck 3 in height and 1+12 in return transport

Can be stacked in relation to
