REVOLUTIONIZE YOUR SOLAR LOGISTICS WITH INNOVATIVE REUSABLE PACKAGING SOLUTIONS
SOLAR-FLEX PALLET
BY MAXIMIZING WAREHOUSE SPACE UTILIZATION, WE ENSURE YOUR OPERATIONS ARE STREAMLINED
AND COST-EFFECTIVE

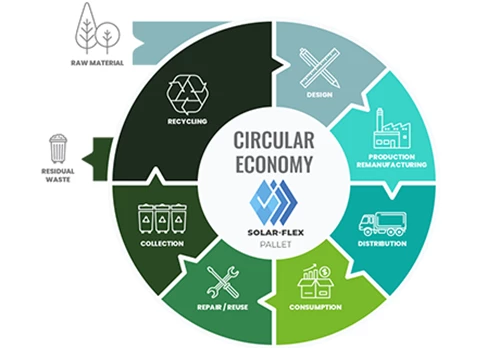

OUR CIRCULAR THINKING APPROACH
At IP-Group, our mission is to advance a circular economy within the solar sector. We achieve this goal by developing cutting-edge shipping and packaging solutions that cut waste, encourage reuse, and enhance lifecycle economics.
Our comprehensive solutions cater to a range of needs within the industry, including Solar Module Shipping & Storage, Job Kitting, Warehouse Organization, R&Rs, Battery & Inverter Packaging, and beyond. Join us in driving sustainability and efficiency in the solar industry.

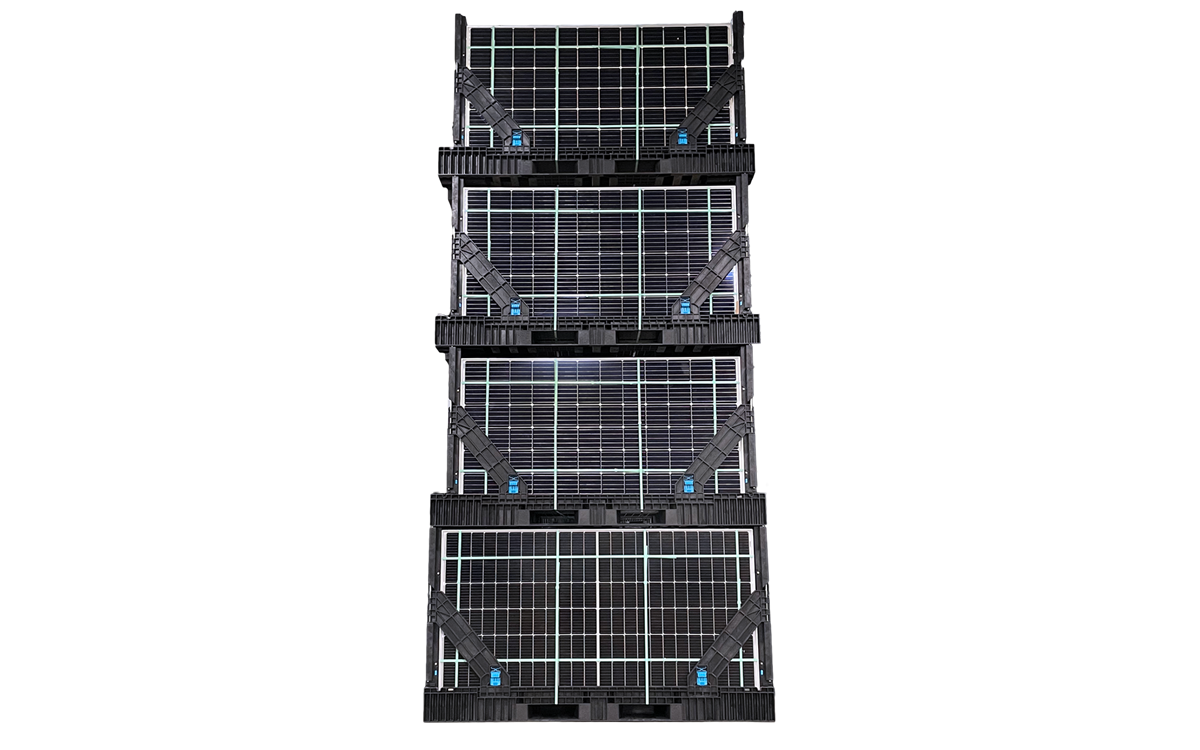

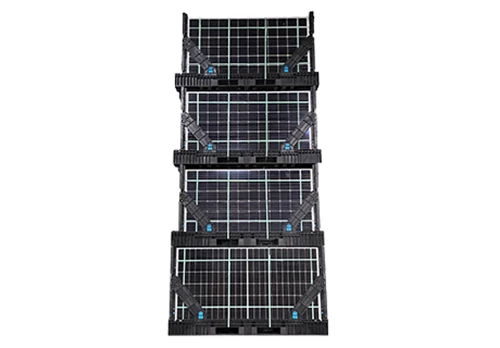

4-HIGH STACKING
Introducing our cutting-edge solution: 4-High Stacking. With this innovative approach, zero weight is placed on your cargo during stacking.
Furthermore, this cutting-edge technology improves efficiencies and reduces costs throughout the entire solar supply chain, from manufacturing to installation.
The Solar-Flex Pallet technology revolutionizes the way goods are handled, providing unparalleled peace of mind for your shipping needs. Say goodbye to concerns about potential damage and hello to enhanced efficiency. Elevate your shipping experience with IP-Group's advanced solutions today.
LOAD PROTECTION: Tall side panels and reinforced cross braces ensure the safety of your cargo during transportation
EXPANDABLE WIDTH: Seamlessly adapt to diverse module sizes with our fully adjustable design.
PARTIAL LOAD SUPPORT: Elevate your partial load handling with our innovative sliding locks and tabs, providing steadfast support and security.
4-HIGH STACKING TECHNIQUE: Achieve optimal cargo protection with our 4-High Stacking method, ensuring that no weight is exerted on your valuable cargo during stacking operations.
REUSABLE EFFIENCY: Streamline your operations with our reusable solution. Collapse and return for reuse after every job, maximizing efficiency and sustainability.
EMBRACING CIRCULARITY: Our commitment to circularity is evident in every aspect. Crafted from post-industrial HDPE, our product is not only reusable but also recyclable into new Solar-Flex Pallets, embodying sustainability at its core.
FEATURES AND BENEFITS
In partnership with PVpallet, IP-Group opens doors to unparalleled possibilities in the renewable energy sector. We're pioneering a new era of eco-conscious packaging for the solar industry for EU Market. We firmly believe that reusable packaging isn't just the sustainable choice—it's the superior choice. With durability, cost-effectiveness, and user-friendliness at its core, why settle for anything less?

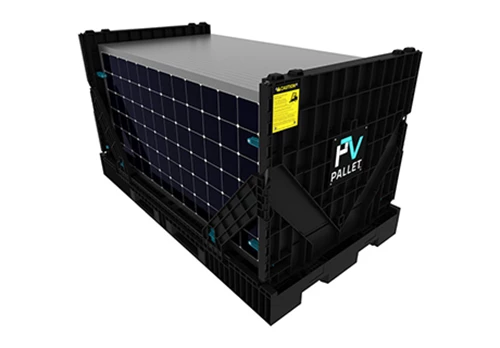

FULL-HEIGHT SIDE WALLS AND PROTECTIVE BRACES SAFEGUARD LOADS IN TRANSIT
ADJUSTABLE WIDTH ACCOMMODATES VARIOUS SOLAR MODULE SIZES
STACKABLE UP TO FOUR HIGH WITH ZERO WEIGHT ON CARGO
LOAD MANAGEMENT SYSTEM SIMPLIFIES MODULE LOADING AND UNLOADING
HELPS SUPPORT PARTIAL LOADS

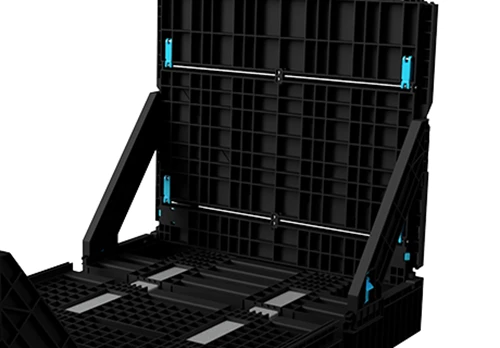

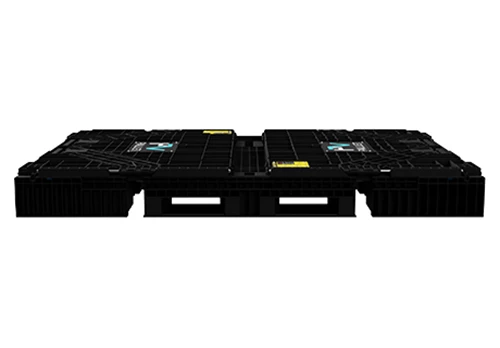

COLLAPSIBLE DESIGN ALLOWS RETURNS AT 1/5 ERECT SIZE
STEEL-REINFORCED BASE REDUCES FLEX AND FORK DAMAGE
ALLOWING LARGE LOADS UP TO 907 KG TO BE TRANSPORTED SECURELY
Please click to download Solar-Flex Pallet X-Series

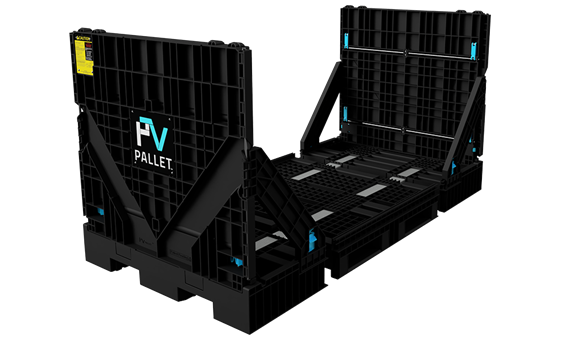

DIMENSIONS X-SERIES
| Outside Dim. (L x W x H) | 2286 x 1219 x 1273 mm |
| Collapsed Height | 266 mm |
| Max. Inside Dim (L x W x H) | 2121 x 1138 x 1072 mm |
| Min. Inside Dim (L x W x H) | 1613 x 1138 x 1072 mm |
| Side Wall Dim (L x W x H) | 1141 x 83 x 1072 mm |
| Min. Fork Length: 48” Side | 1829 mm |
| Min. Fork Length: 90” Side |
1067 mm |
CAPACITY X-SERIES
| Module Capacity | 32 (35 mm) / 27 (40 mm) |
| Max Pallet Cargo Weight | 907 kg |
| Max cargo weight stacked above base pallet: Indoor |
2177 kg |
| Max cargo weight stacked above base pallet: Outdoor/Transit | 907 KG |
| Max Stack Height on Level Surface |
Indoor: 4 High Outdoor: 2 High |
| Max Dynamic Stack | 2 High |
SHIPPING X-SERIES
| 53’ Trailer Load | 26 loaded / 130 collapsed |
| 40’ Trailer or HC Container | 18 loaded / 90 collapsed |
| Truck Stack Height | 2 erect / 10 collapsed |
| Base Weight | 94.4 kg |
| Wall + Braces Weight | 24 kg per wall |
| Total Pallet Weight | 142.5 KG |

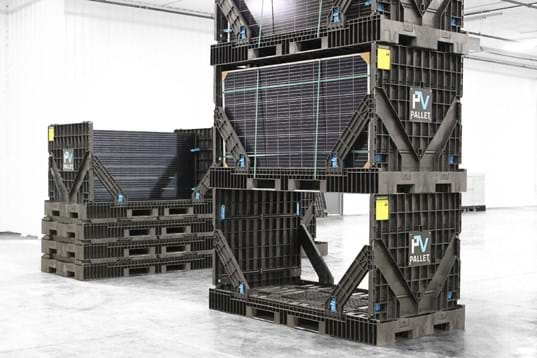

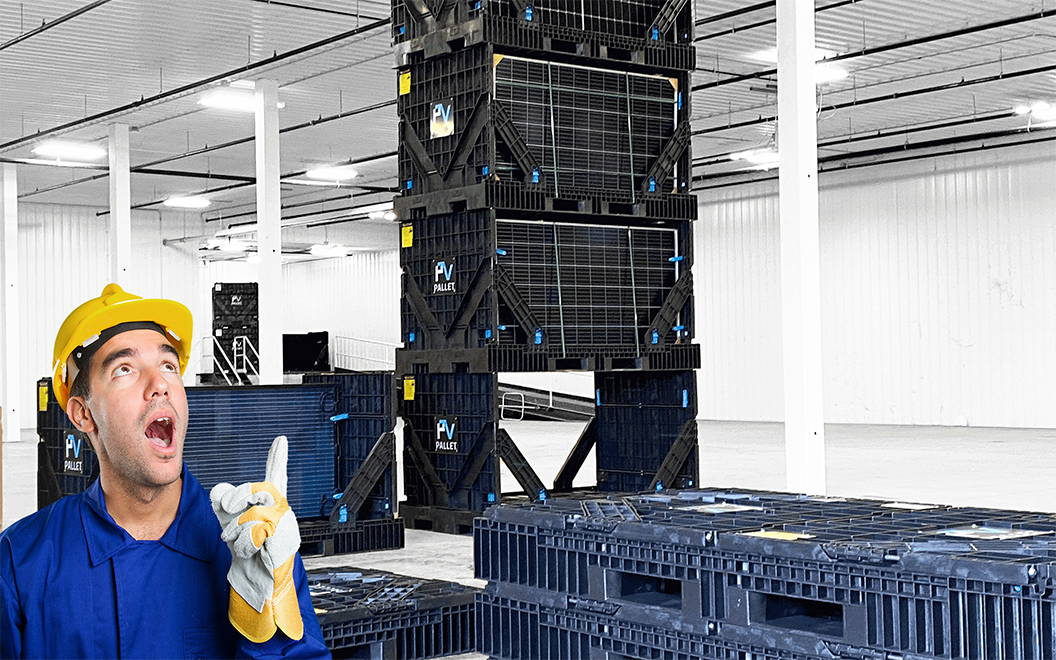

MAXIMIZE WAREHOUSE SPACE
IPG PROJECT MANAGEMENT
Tailored Solutions for Your Future
We understand that no two businesses are alike, which is why we tailor our projects to your specific needs. Our expertise ranges from designing and developing Smart Return Packaging to reduce waste and increase efficiency, to Sustainable Logistics Solutions that minimize environmental impact. Through our thorough knowledge and experience, we provide you with tailored solutions that drive your success in the Solar Industry.
IP-Group has joined forces with PVpallet as their collaborative partner for EU Market. PVpallet Series X is being marketed by IP-Group as the Solar-Flex Pallet.
Introducing the Solar-Flex Pallet X-SE by PVpallet for the EU-Market, the pioneering solution that's transforming the solar industry. This innovative pallet is the first of its kind, boasting adjustable, collapsible, and reusable features. Aptly named for its expandable design, PVpallet Series X effortlessly adapts to accommodate various solar module sizes.
Packed with advanced features including protective sidewalls, a steel-reinforced base, and a sophisticated load management system, this groundbreaking solution revolutionizes the shipment of solar modules. By significantly reducing waste and breakage while enhancing efficiency across the solar supply chain, PVpallet Series X sets a new standard for sustainable shipping practices.
Your Success is Our Top Priority
Our extensive experience and broad knowledge are built on many successful projects over the years. We prioritize your success and understand the complexity of today's business world. Our expertise in project management provides you with confidence and security as you navigate through challenges and opportunities.
Choose the Wisdom of Many Years of Experience
IP-Group leads the way, with knowledge built through many years of dedication to logistics, sustainability, and innovation. If you are looking to transition, optimize, and pave the way for a more efficient and sustainable future, our unique project management is your best resource.
IP-Group stands by its customers every step of the way in implementing the Solar-Flex Pallet into the EU market. With our unwavering support, your transition to this innovative solution will be seamless and successful.

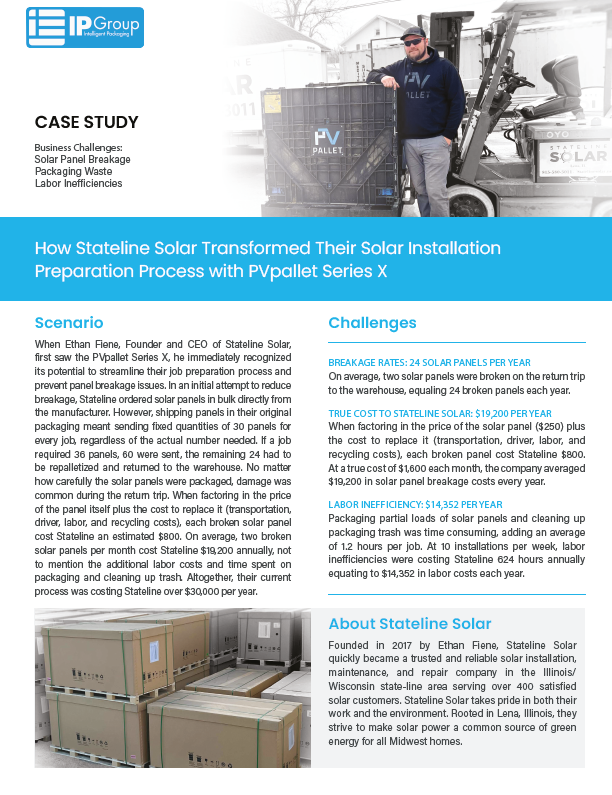

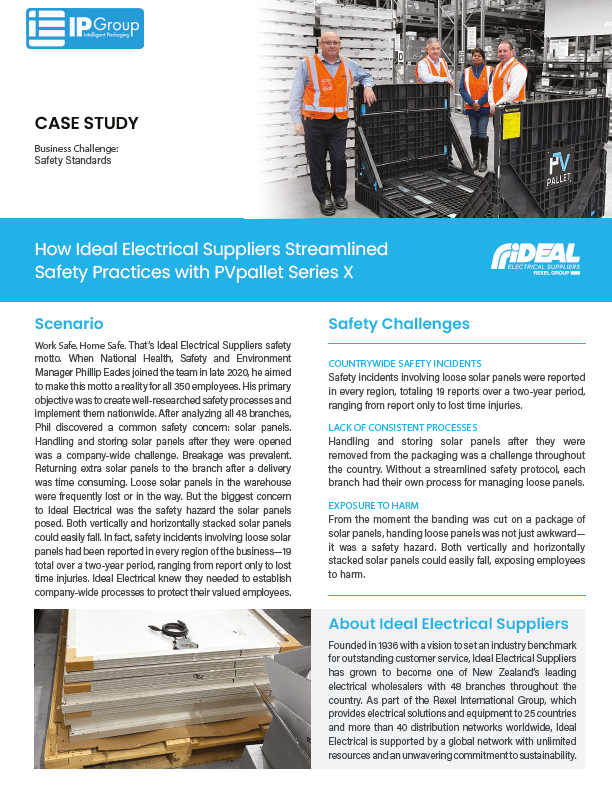

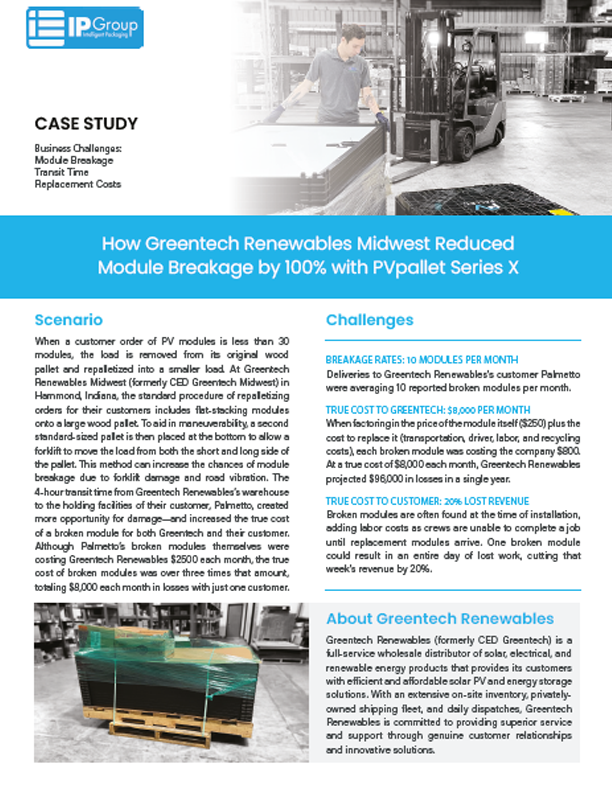

CASE STORIES
